How to Design Azure Kubernetes Service (AKS) Cluster

Before you design an Azure Kubernetes Service cluster, it helps to step back and understand how Kubernetes itself is structured.

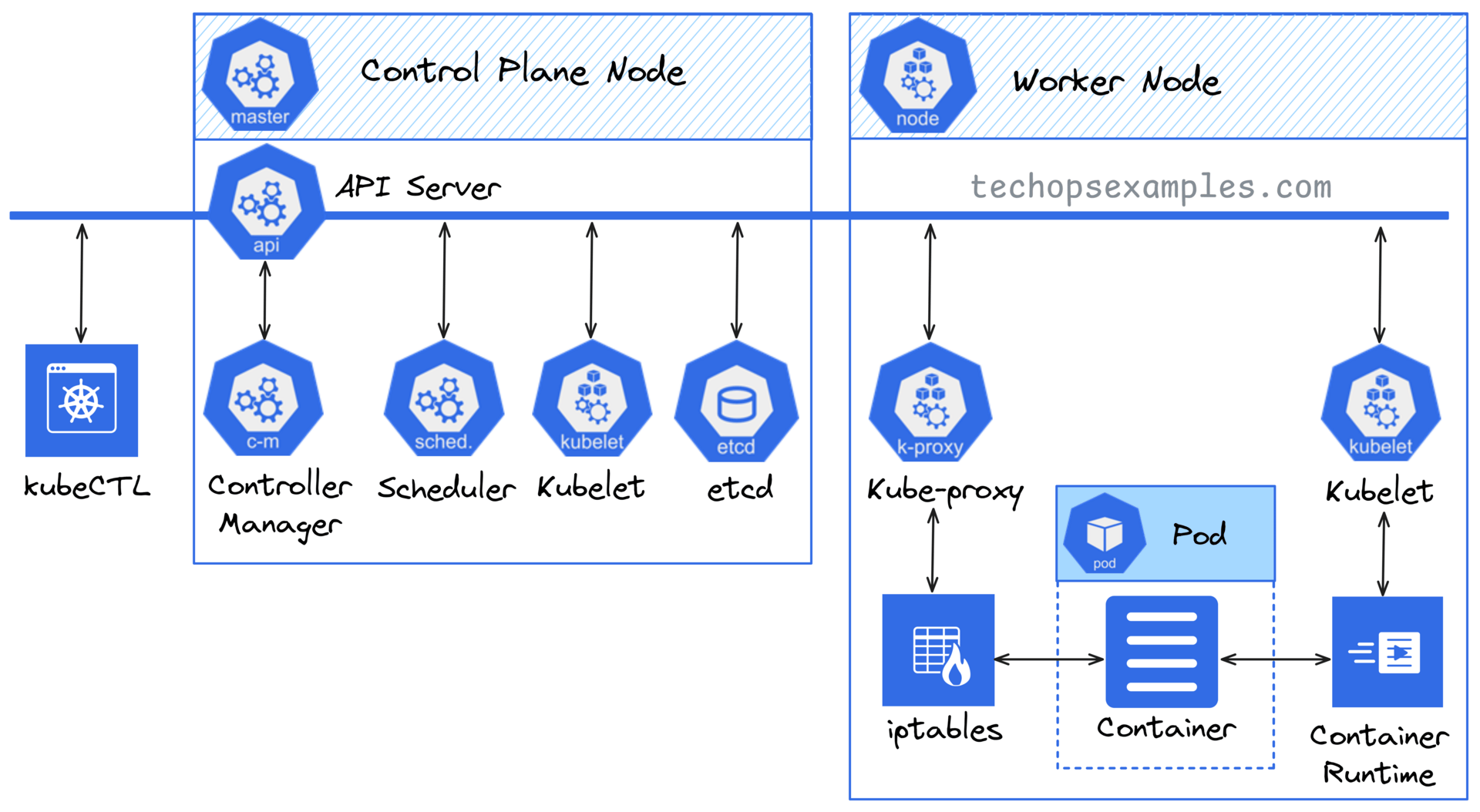

At its core, Kubernetes separates responsibilities between the control plane and the worker nodes. The control plane hosts the API server, scheduler, controller manager, and etcd. These components maintain the desired state of the cluster and make decisions on scheduling, orchestration, and cluster health.

Worker nodes run kubelet, kube proxy, and the container runtime which together handle pod execution, service routing, and communication with the control plane.

In short, The control plane manages the cluster state while the worker nodes focus on running workloads.

With that foundation clear, we can now look at how to design an Azure Kubernetes Service cluster in a way that reflects real production needs.

Cluster Architecture Design

1. Pick how your workloads will run

Decide what actually runs inside your cluster. For example:

  • API services on general purpose nodes

  • Background workers on CPU heavy nodes

  • ML or video apps on GPU nodes

  • Low priority jobs on spot nodes

This directly defines how many node pools you need.

2. Split system and application capacity

  • Create a small system pool for kube system components.

  • Create user pools only for application pods.

This avoids situations where app pods starve DNS or CNI and break the cluster.

3. Choose node sizes with real numbers

Select sizing based on known workload patterns. Examples:

  • API workloads: D4/D8 series

  • Memory heavy: E series

  • High IOPS: L series

  • GPU: NC/ND series

Keep nodes consistent within each pool to avoid unpredictable scaling.

4. Design how the cluster scales

Enable autoscaler on every pool:

  • Use HPA for CPU or memory based workloads

  • Use KEDA for queue length, HTTP rate, or event driven scaling
    Keep at least one extra node of headroom per pool for safe upgrades.

5. Decide how you isolate workloads

Pick one of these:

  • Single AKS per environment (most common)

  • Shared cluster with strict namespace and policy boundaries

Add taints and tolerations to keep workloads on the right node pools.

6. Plan storage per workload, not per cluster

Choose storage based on use case:

  • Azure Disks for databases or single writer apps

  • Azure Files for shared read/write

Keep databases on managed services unless you have a strong reason not to.

7. Map identity and secrets to how apps run

  • Cluster uses managed identity to talk to Azure resources

  • Apps use workload identity for their own Azure access

  • All secrets come from Key Vault, not from raw Kubernetes secrets

Networking is the most crucial aspect which needs special attention and which we would look next.
